AmeriGlide Horizon Plus- Outdoor Stair Lift

spacer

Now you can enjoy all the same great features of the peerless Horizon stair lift in an outdoor version that is built to be weather and waterproof and is the perfect option to help you overcome outdoor obstacles.  Whether you are looking for help climbing the porch stairs to your home or want a safe way to gain access to your yard and other outdoor spaces, the Horizon Plus Outdoor Stair Lift solve your outdoor mobility problems.


Standard features include:
  • Ergonomic joystick located in the armrest
  • Digital diagnostic display for real time information
  • Security key switch that will prevent unauthorized users from accessing your chair
  • Swivel seat for safe and easy dismounts

Horizon Outdoor Stair Lifts are equipped with additional safety features that will prevent your stair lift from being damaged by weather conditions.  The waterproof cover protects both the seat and carriage, ensuring that your lift is always clean, dry, and ready to use.  The included rubber foot mat will provide extra traction to help prevent falls.  Most importantly, all electronic components and controls have been thoroughly insulated and protected so that your chair will continue to operate at an optimal level for many years to come.

Call us today to find learn more about the innovative and affordable Horizon Plus Outdoor Stair Lift.  Our experts are ready to answer all of your questions and get you started on the road to greater freedom and mobility.  Also, don’t forget to ask about our unbeatable warranties!


NOTE: Outdoor Stair Lifts are not built to be operated in snow, ice, or inclement weather and may require maintenance (lubrication, switch inspection, and steel component inspection) multiple times per year depending on the conditions to which they are exposed. The steel components are subject to rust and can degrade rapidly depending on their exposure to weather.

Product Specifications
Drive TypeRack and Pinion with OSG control
Battery PoweredYes
Self InstallableNo
Basic Installation IncludedYes
Standard Capacity308 lb
Max Track Length, Standard14.75'
Max Track Length, Optional55.25'
Rail Angle, Min25°
Rail Angle, Max62°
Track MaterialAluminum Single Rail
Seat Width, Min17.7"
Seat Width, Max22"
Swivel SeatYes
Swivel Seat RotationPowered - Top Only
Flip-Up SeatYes
Flip-Up ArmrestsYes
Constant Pressure ControlsYes
Footrest Safety SensorYes
Call Stations IncludedYes
Digital Diagnostics DisplayYes
Unit Footprint, In Use24.8"
Unit Footprint, Parked13.5"
Key LockYes

Options Available for the AmeriGlide Horizon Plus- Outdoor Stair Lift

  • Ergo Seat Style and Color
    • Ergo Standard Seat - Beige   $0.00

      Ergo Standard Seat - Beige
    • Optional ERGO Standard Seat Colors   $0.00

      Ergo Standard Seat - Beige
    • Ergo Standard Seat - Red   $50.00

      Ergo Standard Seat - Red
    • Ergo Standard Seat - Grey   $50.00

      Ergo Standard Seat - Grey
    • Ergo Standard Seat - Blue   $50.00

      Ergo Standard Seat - Blue
    • Optional Ergo Plus Seat Colors   $0.00

      Ergo Standard Seat - Blue
    • Ergo Plus Seat - Beige   $75.00

      Ergo Plus Seat - Beige
    • Ergo Plus Seat - Red   $75.00

      Ergo Plus Seat - Red
    • Ergo Plus Seat - Grey   $75.00

      Ergo Plus Seat - Grey
    • Ergo Plus Seat - Blue   $75.00

      Ergo Plus Seat - Blue
  • Control Location
    • We can put the controls on either arm to suit you.   $0.00

      Ergo Plus Seat - Blue
    • Right Side   $0.00

      No Image
    • Left Side   $0.00

      No Image
  • Standard Features
    • Wireless Infra-red Call/Send Remote (2)   $0.00

      No Image

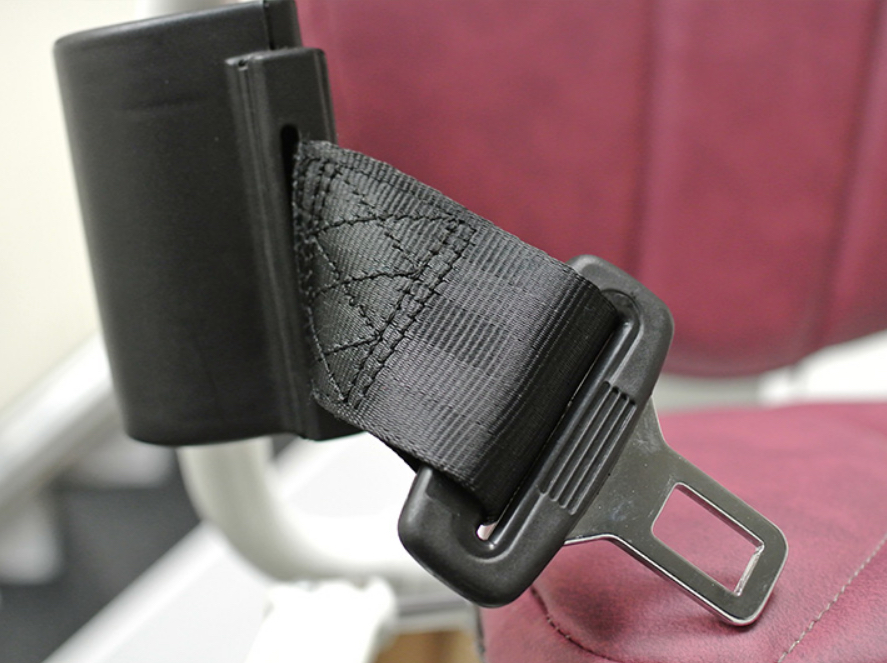

    • Retractable Reel Seat Belt   $0.00

      No Image
    • Digital Diagnostic Display   $0.00

      No Image
    • Key Lock   $0.00

      No Image
    • Manual Swivel   $0.00

      No Image
  • Orientation (looking UP the staircase)
    • Choose Left or Right...   $0.00

      No Image
    • The stair lift will be on the left   $0.00

      No Image
    • The stair lift will be on the right   $0.00

      No Image
  • Additional Track
    • Custom Rail Extension - A rail joint kit is required for every extra 8 ft. of rail.   $0.00

      No Image
    • Up to 14' (168") of Rail Included   $0.00

      No Image
    • Extra Rail Per Foot   $50.00

      No Image
    • Rail Joint Kit   $43.00

      No Image
    • Rail Leg   $29.00

      No Image
  • Additional Hardware
    • Bracket Extensions (6 Extensions with hardware)   $60.00

      Horizon Stair Lift Mounting Bracket Extensions, Qty 6 with Hardware
  • Installation
    • NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout   $0.00

      Horizon Stair Lift Mounting Bracket Extensions, Qty 6 with Hardware
    • Self Installation   $0.00

      No Image
    • Installation Only   $575.00

      No Image
    • Installation and Measurement   $725.00

      No Image
    • Measurement Service   $150.00

      Stair Lift Measurement Service
    • Double Stair Lift Installation Service   $875.00

      No Image
    • Permit and Inspection   $350.00

      No Image
  • Installation Special Cases
    • Installation In Remote or Limited Access Location   $285.00

      No Image
    • Installation On Concrete, Steel, or Tile Stairs   $300.00

      No Image
  • Measurements
    • Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.   $0.00

      No Image
    • 1. Overall length   $0.00

      No Image
    • 2. Top stair to bottom stair   $0.00

      No Image
    • 3. Staircase width   $0.00

      No Image
    • 4. Bottom clearance   $0.00

      No Image
    • 5. Rise of one step   $0.00

      No Image
    • 6. Tread of one step   $0.00

      No Image
    • 7. Diagonal   $0.00

      No Image
    • 8. Door at the top   $0.00

      No Image
    • Need help measuring? Print out the "How to Measure" worksheet.   $0.00

      No Image
