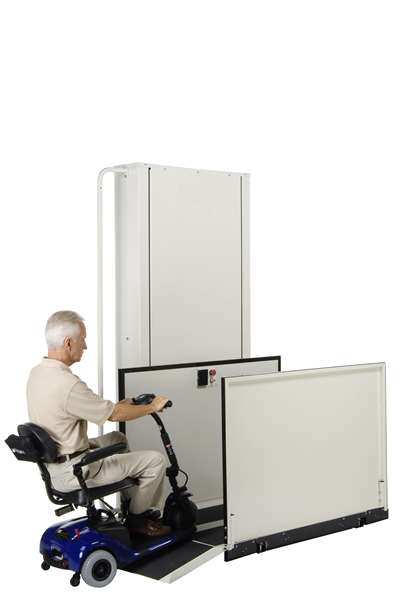

  • Driving In

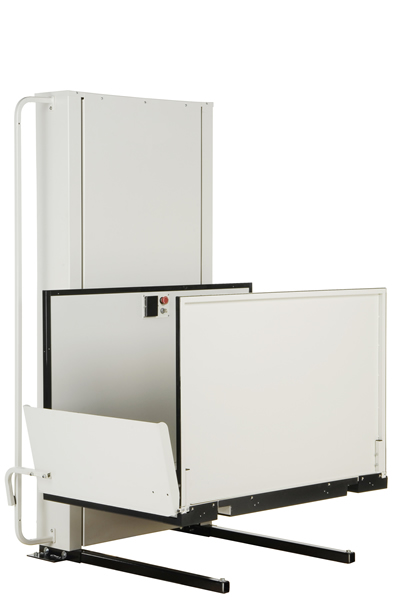

  • Going Up 1

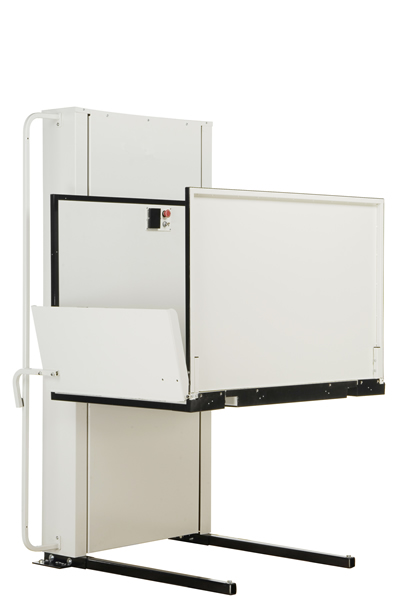

  • Going Up 2
  • Going Down 1
  • Going Down 2

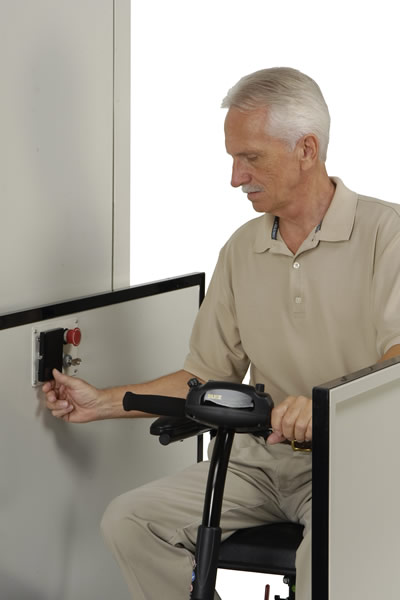

  • Operating Controls

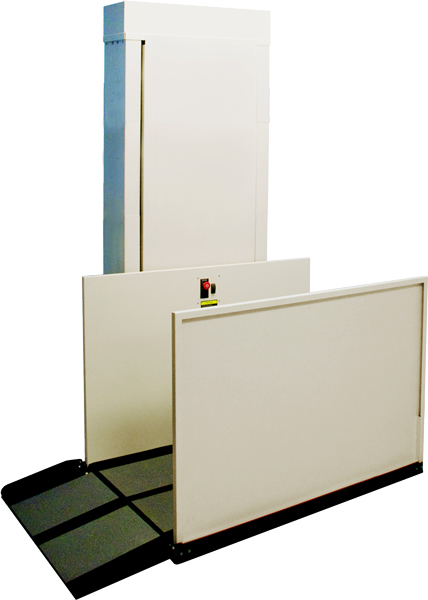

AmeriGlide's Hercules Commercial Vertical Lift, with its incredible 750 pound lifting capacity, can eliminate the barriers stairs create for virtually anyone. Need a vertical lift for outside your business?  Need a vertical lift for inside your office? Again, the Hercules Commercial Vertical Lift is the easy solution.

The Hercules Commercial Vertical Lift is built strong around an AC motor that uses a screw drive instead of belts. Other standard features which are extra cost on other competitor vertical lifts include, weather resistant controls, top and bottom limit switches, a 42" high guard panel, and a fixed ramp. The lift's platform is a solid style platform with safety plate and comes standard with a solid handrail and paddle controls. With all these features the Hercules Vertical Lift is the safe, strong, and economical solution to the obstacles found in public buildings, private businesses, places of worship, schools, and more.



  • 750 lb. weight capacity
  • Solid handrail
  • Solid platform
  • Platform safety plate
  • AC motor with screw drive, no belts
  • Constant pressure controls
  • Switches and controls are weather resistant
  • Top limit switch allows you to set the stop of the vertical lift at any height (up to the maximum lift height)
  • Bottom limit switch also included
  • 36" x 54" non-skid platform
  • 42" high solid side platform walls
  • Large number of options to meet commercial regulations
  • Some assembly required
  • ASME A18.1, Section 2 - "Vertical Platform Lifts" compliant
  • CSA B44.1 / ASME 17.5 - "Elevator and Escalator Electrical Equipment" compliant

Contact us and one of our vertical lift experts will answer all of your questions about our Hercules Commercial Vertical Lift and any accessories you may need.

spacer

Options Available for the Hercules Commercial Vertical Lift

  • Lifting Height
    • 53" Maximum Lift Height  $0.00
    • 77" Maximum Lift Height  $700.00
    • 101" Maximum Lift Height  $1,800.00
    • 125" Maximum Lift Height  $3,300.00
    • 149" Maximum Lift Height  $4,400.00
    • 171" Maximum Lift Height  $5,500.00
  • Tower Orientation
    • Tower On The Left  $0.00
    • Tower On The Right  $0.00
  • Power Source
    • AC Powered  $0.00
    • DC Powered, Provides 15 - 20 Cycles During Power Outage, Batteries Not Included  $738.99
  • Platform Size
    • 36" x 54" (34" Usable Width)  $0.00
    • 36" x 60" (34" Usable Width) - Available Feb 1st, 2010  $244.99
    • 42" x 60" (40" Usable Width) - Available Feb 1st, 2010  $491.99
  • Platform Access
    • Straight Through  $0.00
    • Same Side Entry & Exit with Solid Endwall (101" Lift or Higher Only)  $368.99
    • 90° Adjacent Access (34" x 54" Only)  $368.99
  • Platform Controls
    • Up / Down Paddle Controls  $0.00
    • Keyed Platform Controls with Emergency Stop Alarm  $244.99
  • Platform Options
    • Solid Platform  $0.00
    • Safety Pan  $0.00
    • Inside Hand Rail - 48"  $0.00
    • 18" Toeplate for Ground to Platform  $0.00
    • Automatic Ramp for Ground to Platform (not for use with Platform Gate)  $121.99
    • Left Hinge Platform Gate - with Interlock (not for use with Adjacent Access Platform)  $614.99
    • Right Hinge Platform Gate - with Interlock (not for use with Adjacent Access Platform)  $614.99
  • Landing Controls
    • Call/Send Control, Rocker Switch (each)  $119.00
    • Upper Keyed Call/Send Control, Rocker Switch (each)  $239.00
    • Lower Keyed Call/Send Control, Rocker Switch (each)  $239.00
  • Landing Options
    • Left Hinged Landing Gate - with Interlock & Call/Send Control (each)  $739.00
    • Right Hinged Landing Gate - with Interlock & Call/Send Control (each)  $739.00
  • Interlocks
    • Surface Mount Interlocks  $0.00
    • Upper Left Hand EMI Interlock, Surface Mount (each)  $369.00
    • Upper Right Hand EMI Interlock, Surface Mount (each)  $369.00
    • Lower Left Hand EMI Interlock, Surface Mount (each)  $369.00
    • Lower Right Hand EMI Interlock, Surface Mount (each)  $369.00
    • Flush Mount Interlocks  $0.00
    • Upper Electric Strike Interlock, Flush Mount, Metal Frame (each)  $369.00
    • Lower Electric Strike Interlock, Flush Mount, Metal Frame (each)  $369.00
    • Upper Electric Strike Interlock, Flush Mount, Wood Frame (each)  $369.00
    • Lower Electric Strike Interlock, Flush Mount, Wood Frame (each)  $369.00
    • Other Interlock Options  $0.00
    • Wiring for Customer Provided Interlock (each)  $159.00
    • Keyed Dead Latch for Flush Mount Electric Strike Interlock (each)  $119.00
  • Accessories
    • Anchor Bolt Kit  $0.00
    • Phone Jack  $121.99
    • Emergency Light  $121.99
    • Batteries for DC Option  $239.99
    • Fascia Panel (per foot)  $59.00
  • Additional Delivery Services
    • Free Liftgate Service on 53" Units As Requested  $0.00
