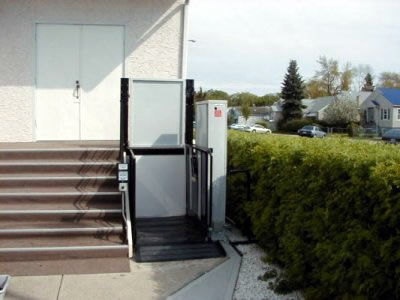

Atlas Commercial Vertical Lift
When we set out to design a vertical lift for commercial applications, our goal was to help you provide safe and reliable lifts for your clientèle with disabilities while complying with the Americans with Disabilities Act (ADA).*
Today, numerous businesses, churches, sports complexes, and similar organizations have installed AmeriGlide Atlas Commercial Vertical Lifts. Will you be next?
- Available in 96", 120", and 144" heights
- Ready for shaft installations
- Top limit switch allows you to set the stop of the platform lift at any height (up to the maximum lift height)
- Straight-though lifting platform is 54" long x 34" wide
- Plugs into a 110V-15A outlet
- Includes two interlocks
- Includes solid platform
- Includes upper & lower keyed call stations
- Keyed platform controls with emergency stop, emergency alarm, and light
- Innovative soft touch control pads ensure ease of operation
- Screw drive
- Requires minimal maintenance
When you contact one of our platform lift experts, we'll answer all your questions about our Atlas Commercial Vertical Lift and any accessories you may need to meet local codes. We'll also work with you to make sure you're complying with all ADA regulations.
* For commercial applications please consult your local elevator branch for approval before beginning construction. Code requirements can vary greatly from region to region.
-
Lifting Height
- 96" Maximum Lift Height $0.00
- 120" Maximum Lift Height $571.42
- 144" Maximum Lift Height $1,321.42
-
Platform Type
- Solid Platform $0.00
- Solid Platform with Safety Plate $214.29
-
Platform Access
- Straight Through $0.00
- Adjacent Access $228.58
- Same Side Entry / Exit (also requires Solid End Wall) $471.43
-
Tower Location
- Tower On The Left $0.00
- Tower On The Right $0.00
-
Commercial Package
- Upper and Lower Interlocks $0.00
- Emergency Alarm and Light $0.00
- 18" Toeplate $0.00
- Full Length Side Walls $0.00
-
Controls
- Upper Keyed Pushbutton Remote $0.00
- Lower Keyed Pushbutton Remote $0.00
- Additional Pushbutton Remotes (each) $135.00
- Additional Keyed Pushbutton Remotes (each) $230.00
- Additional Toggle Remotes (each) $195.00
- Additional Keyed Toggle Remotes (each) $285.00
-
Doors & Gates
- Platform Gate $478.58
- Upper Landing Gate $507.15
- Oversize Upper Landing Gate $885.72
- Lower Non-Fire Door with Interlock $2,107.15
- Lower Fire Door with Interlock $3,728.58
- Upper Non-Fire Door with Interlock $2,107.15
- Upper Fire Door with Interlock $3,728.58
-
Options
- Full Battery Backup System $1,571.99
- Batteries for Backup System $334.99
- 3rd Stop Wiring Charge $450.00
- Additional Interlocks (each) $450.00
- Solid End Wall $314.29
- 48" Inside Grab Rail $107.15
-
Delivery
- Commercial Location with Loading Dock $0.00
- Liftgate Delivery, 28" & 52" Units Only $279.00
- Limited Access Delivery Charge $109.00
- AK, HI, PR, or International - Please Call for Quote $0.00
