Residential Vertical Lift Tall Tower

 ameriglide title right
Call to Speak to an Expert
Additional Images
Click image for a larger version.

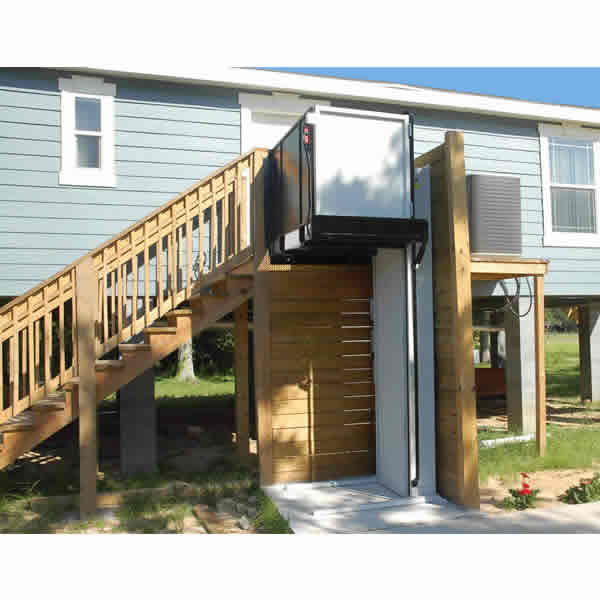

  • Residential Example 1

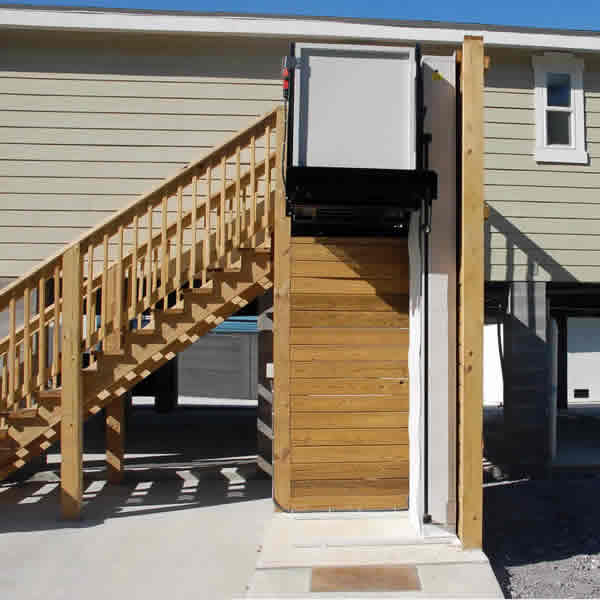

  • Residential Example 2

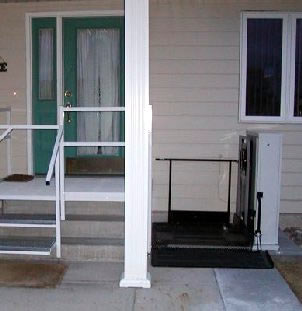

  • Residential Example 3
At AmeriGlide, we know that independent mobility allows you to remain active and improves your quality of life. Your mobility is your personal freedom, and that's important to us. That's why our residential vertical lift is designed for your safety, comfort, and convenience.
  • Standard lifting height of 96"
  • Units are also available 120" and 144" heights
  • Straight-though lifting platform is 54" long x 34" wide (side access is also available)
  • Expanded metal platform allows full visibility under platform
  • Unit is completely pre-wired and plugs into 110v / 15a wall outlet
  • Keyed emergency stop controls use of lift
  • Innovative soft touch control pads ensure ease of operation
  • Screw drive
  • Maintenance-free operation

When you contact us, we'll be happy to answer any questions you may have about how the residential vertical lift fits your life.

Options Available for the AmeriGlide Vertical Platform Lift - Residential

  • Lifting Height
    • 96"  $0.00
    • 120"  $571.43
    • 144"  $1,285.71
  • Platform Access
    • Straight Through - lower access on the right  $0.00
    • Straight Through - lower access on the left  $0.00
    • Adjacent Access - lower access on the right  $214.29
    • Adjacent Access - lower access on the left  $214.29
  • Accessories
    • Solid Handrail  $171.43
    • Solid End Wall (for Adjacent Access Units)  $300.00
    • Control Wall Extension  $300.00
    • 3 Stop Wiring and Toggle  $428.57
    • Same Side Entry/Exit Wiring Charge  $428.57
    • Carriage Gate with Lock  $885.71
    • 48" Inside Grab Rail  $90.00
    • Lighted Engine Stop  $90.00
    • Solid Platform  $242.86
    • Solid Platform with Safety Plate  $457.14
  • Landing Doors
    • Lower Non-Fire Door with Lock  $2,000.00
    • Upper Non-Fire Door with Lock  $2,000.00
  • Lower Landing Options
    • Interlock, Lower Landing  $428.57
    • Remote, Lower Landing  $128.57
    • Remote with Key, Lower Landing  $221.43
    • Two-Direction Toggle, Lower Landing  $185.71
    • Toggle with Key, Lower Landing  $271.43
  • Upper Landing Gate
    • None  $0.00
    • Oversize Gate  $357.14
    • Gate with Lock and Key Remote  $1,128.57
    • Gate with Lock and Toggle  $1,185.71
  • Upper Landing Options
    • Interlock, Upper Landing  $428.57
    • Remote, Upper Landing  $128.57
    • Remote with Key, Upper Landing  $221.43
    • Two-Direction Toggle, Upper Landing  $185.71
    • Toggle with Key, Upper Landing  $271.43
  • Delivery
    • Business with Loading Dock  $0.00
    • Pick Up at Trucking Terminal  $0.00
    • Business without Loading Dock  $142.86
    • Residential Delivery / Forklift on site  $142.86
