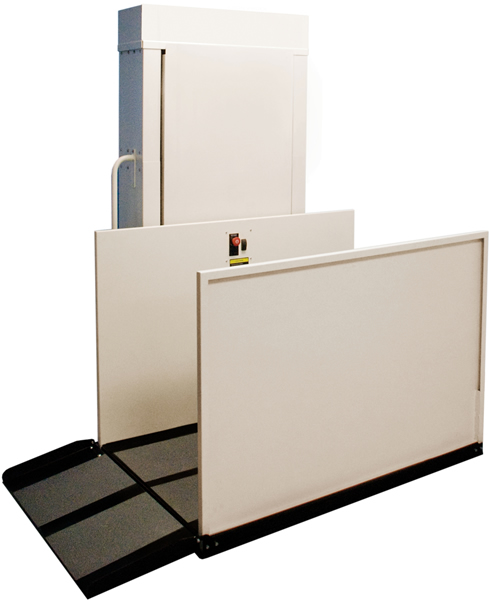

Reconditioned Hercules II Residential Vertical Lift

Reconditioned Hercules II Residential Vertical Lift

+Enlarge Picture

Product Review

(2)

(100)

Write a review!

Read 2 reviews

Vertical Platform Lift Help

Brochure

Owner's Manual

Top Landing Gate Drawing

Typical Drawing

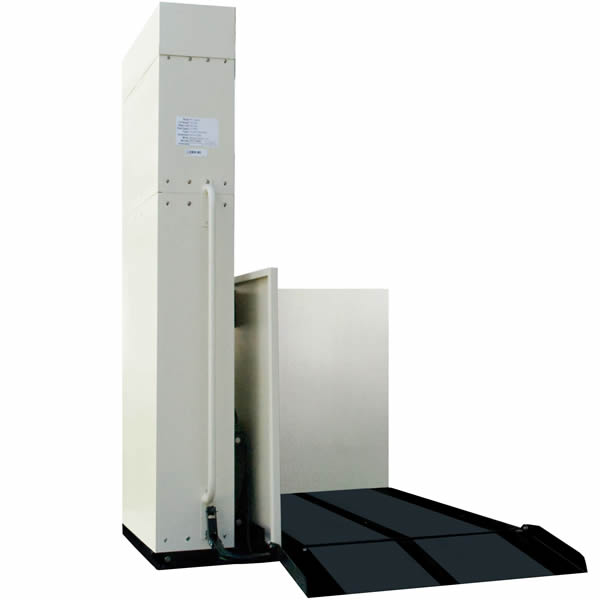

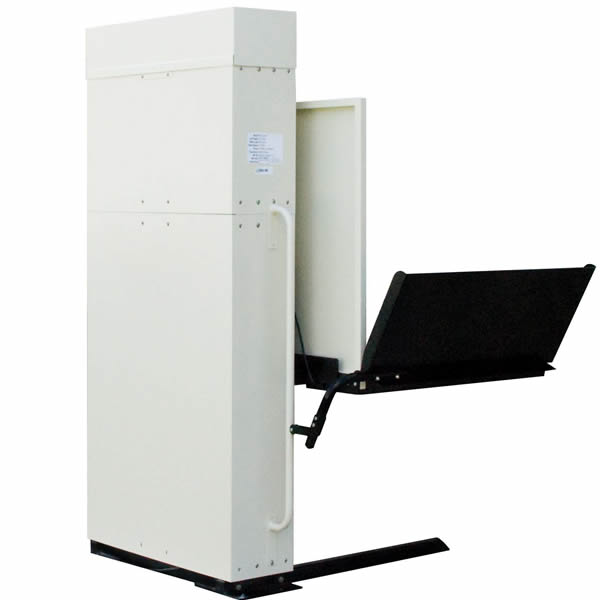

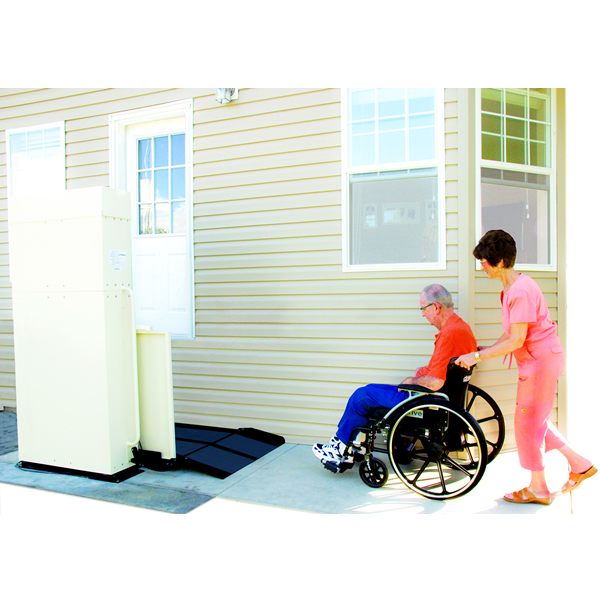

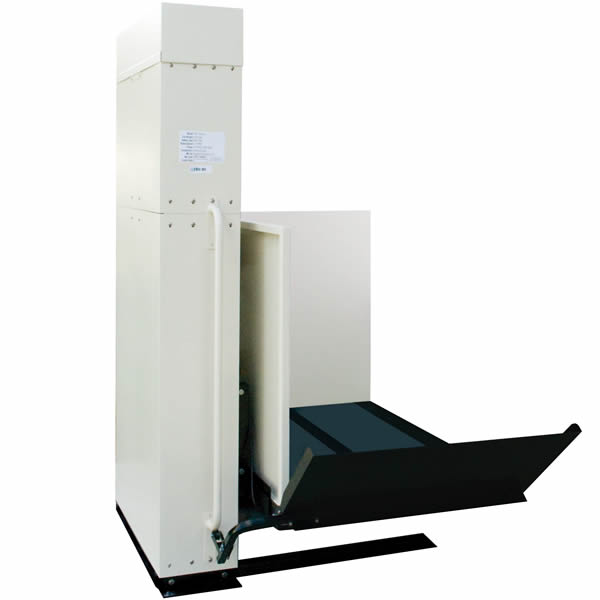

Additional Images

Click image for a larger version.

$3,439.00

Plus Shipping

Design Your Lift

View Options Add to Cart

Our Reconditioned Hercules II Residential Vertical Lift makes home access even more affordable. Reconditioned at the factory to arrive at your home in like-new condition, these lifts offer the same capabilities and specifications as our new Hercules II Residential lifts except for their 30-day parts warranty.

Same as the new unit, the Reconditioned Hercules II Residential Vertical Lift has a robust 600 pound weight capacity and a 36" x 48" solid platform. This residential lift, with its weather resistant controls and sturdy construction, is designed to withstand even the harshest weather. Contact one of our residential lift representatives to learn more about the Reconditioned Hercules II Residential.

The Hercules II Residential Vertical Lift at a Glance:

600 lb. weight capacity
Solid platform
Safety pan
Some assembly required
Can be further disassembled for inside installations
AC motor with Acme screw drive
Paddle platform controls
Switches and controls are weather resistant
Top limit switch allows you to set the stop of the lift at any height (up to the maximum lift height)
Bottom limit also included
ASME A18.1, Section 5 - "Private Residence Vertical Platform Lifts" compliant when properly configured
CSA B44.1 / ASME 17.5 - "Elevator and Escalator Electrical Equipment" compliant when properly configured

Options Available for the Reconditioned Hercules II Residential Vertical Lift

Lifting Height
- 53" Max Lift Height, Acme Screw Drive $0.00
- 77" Max Lift Height, Acme Screw Drive $660.00
- 101" Max Lift Height, Acme Screw Drive $1,680.00
- 125" Max Lift Height, Acme Screw Drive $3,150.00
- 149" Max Lift Height, Ball Screw Drive $4,780.00
- 171" Max Lift Height, Ball Screw Drive $6,040.00
Crating & Assembly
- No Crating - Some assembly is required. $0.00
- 36" x 48" or 36" x 54" Platform $0.00
- 53" Unit Shipped Crated & Fully Assembled $459.99
- 36" x 60" or 42" x 54" Platform - Requires Extra Large Crate $0.00
- 53" Unit Shipped Crated & Fully Assembled $690.99
Tower Orientation
- Tower On The Left $0.00
- Tower On The Right $0.00
Power Source
- AC Powered $0.00
- DC Battery Powered - Battery provides 15-20 cycles during power outage. Batteries included. $999.99
Electronics
- A standard electronics control board will work with a landing gate, one call/send only, and 36" side walls. $0.00
- Standard Electronics Control Board $0.00
- A commercial electronics control board allows operation with doors, gates, multiple call/send controls, and other devices. $0.00
- 42" high side walls require a Commercial Electronics Control Board $0.00
- Commercial Electronics Control Board $308.99
- Ball Screw Drive Models Include A Commercial Electronics Control Board $0.00
Portable Package
- None $0.00
- Portable Package
  53" or 77" Max Lift Height
  36" x 54" Straight Thru Platform
  Platform Gate On Exit Side Included $1,613.99
- Portable Package also includes an Automatic Ramp and Safety Pan $0.00
Platform Type
- 36" x 48" Straight Thru (34" Usable Width) $0.00
- 36" x 54" Straight Thru (34" Usable Width) $152.99
- 36" x 60" Straight Thru (34" Usable Width) $244.99
- 42" x 54" Straight Thru (40" Usable Width) $491.99
- 36" x 54" 90 Degree (34" Usable Width) $368.99
- 36" x 60" 90 Degree (34" Usable Width) $490.99
- 42" x 54" 90 Degree (40" Usable Width) $736.99
Platform Access
- Straight Thru or 90 Degree $0.00
- Same Side Entry & Exit - Lift height must be 101" or greater. $368.99
Platform Gate
- Lifts 8' and over that are not in a hoistway require a platform gate or an interlock for a customer provided gate. $0.00
- Platform gates require 42" high side walls (found below). $0.00
- No Platform Gate $0.00
- Left Swing 36" Wide Straight Thru Platform Gate with Interlock $613.99
- Right Swing 36" Wide Straight Thru Platform Gate with Interlock $613.99
- Left Swing 42" Wide Straight Thru Platform Gate with Interlock $859.99
- Right Swing 42" Wide Straight Thru Platform Gate with Interlock $859.99
- Left Swing 90 Degree Platform Gate with Interlock $983.99
- Right Swing 90 Degree Platform Gate with Interlock $983.99
Platform Controls
- Paddle Controls with Emergency Stop Button $0.00
Platform Control Options
- Emergency Alarm & Lighted Button $208.99
- Keylocks for Controls $34.99
Platform Options
- Solid Platform with Safety Pan $0.00
- Inside Grab Bar $0.00
- 42" high side walls are required for lifts 8' and taller. $0.00
- 42" high side walls are required for ANY lift with a platform gate. $0.00
- 36" High Side Walls $0.00
- 42" High Side Walls $153.99
- 42" high side walls require a Commercial Electronics Control Board $0.00
Ramp Type & Pit Switch
- Automatic Ramp $0.00
- Fixed Ramp $0.00
- No Ramp with Pit Switch Option $122.99
Landing Controls
- Call/Send Control Station (each) $119.00
- Wireless Call/Send Control Stations (pair) $479.00
- Keylocks for Controls (each) $34.00
Landing Gate
- Landing gates below include an interlock and a call/send control built into the gate. $0.00
- Left Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each) $809.00
- Right Swing 36" Wide Landing Gate with Interlock & Call/Send Control (each) $809.00
- Left Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each) $979.00
- Right Swing 42" Wide Landing Gate with Interlock & Call/Send Control (each) $979.00
- Keylocks for Controls (each) $34.00
- Landing gates below include an interlock only. $0.00
- Left Swing 36" Wide Landing Gate with Interlock Only (each) $739.00
- Right Swing 36" Wide Landing Gate with Interlock Only (each) $739.00
- Left Swing 42" Wide Landing Gate with Interlock Only (each) $909.00
- Right Swing 42" Wide Landing Gate with Interlock Only (each) $909.00
- Keylocks for Controls (each) $34.00
Fire Rated Doors
- No Door $0.00
- Fire-Rated Hoistway Door with EMI - Left (each) $2,079.00
- Fire-Rated Hoistway Door with EMI - Right (each) $2,079.00
- Fire-Rated Hoistway Door with Electric Strike - Left (each) $2,219.00
- Fire-Rated Hoistway Door with Electric Strike - Right (each) $2,219.00
Interlocks
- Surface mount EMI interlocks below are for a customer provided door or gate. $0.00
- Left Swing Top Landing Door/Gate EMI Interlock (each) $409.00
- Right Swing Top Landing Door/Gate EMI Interlock (each) $409.00
- Flush mount electric strike interlocks below are for a customer provided door or gate. $0.00
- Top Landing Electric Strike Interlock - Metal Frame (each) $409.00
- Bottom Landing Electric Strike Interlock - Metal Frame (each) $409.00
- Top Landing Electric Strike Interlock - Wood Frame (each) $409.00
- Bottom Landing Electric Strike Interlock - Wood Frame (each) $409.00
- Other Interlock Options $0.00
- Keyed Dead Latch for Flush Mount Electric Strike Interlock (each) $139.00
- Wiring For Interlock (per landing) $159.00
Accessories
- Anchor Bolt Kit $0.00
- Tower Braces $153.99
- 3rd Stop Wiring Charge $491.99
- Phone Jack $136.99
- Emergency Light $136.99
- Fascia Panel (per foot) $59.00
- Automatic Door Opener - Requires Upgraded Electronics $2,349.00
Additional Delivery Services
- Free Liftgate Service on 53" Units As Requested $0.00

Customer Reviews

2 reviews
		2
		0
		0
		0
		0

Sort byDate Helpfulness Rating

Aug 29, 2011 8:20 AM
Herculed lift
RWBSpeed from ChicagoLand Area would recommend this to a friend.
A Little About Myself	Disabled
Pros	Smooth and easy to control, with ample space.
Cons	It needs another switch on the main unit, to raise vertical lift in case it is in the down position.
Service & Delivery	excellent
Very good lift. Love it.
7 of 7 people found this review helpful Did you find this review helpful? Yes / No

Jun 10, 2011 8:33 AM
Great
George the cop. from Chicago, Il would recommend this to a friend.
A Little About Myself	Retired Chicago Police Officer
Pros	The vertical lift, is easy to use and at a great price.
Cons	Better instructions might help.
Service & Delivery	No problem at all.
I waited too long to buy it.
7 of 7 people found this review helpful Did you find this review helpful? Yes / No
